| AD Conversion |
24 bits + AF method
* AF method (Adaptive Focus method) is a proprietary method from Roland & BOSS that vastly improves the signal-to-noise (SN) ratio of the AD and DA converters. |
| DA Conversion |
24 bits |
| Sampling Frequency |
44.1 kHz |
| Patches |
99 (User) + 99 (Preset) |
| Effect
|
108 types |
| Phrase Loop |
32 sec |
| Nominal Input Level |
INPUT: -10 dBu, AUX IN: -20 dBu |
| Maximum Input Level |
INPUT: +7 dBu, AUX IN: 0 dBu |
| Input Impedance |
INPUT: 1 M ohm, AUX IN: 27 k ohms |
| Nominal Output Level |
OUTPUT (L/MONO, R): -10 dBu, PHONES: -10 dBu |
| Output Impedance |
OUTPUT (L/MONO, R): 1 k ohm, PHONES: 44 ohms |
| Recommended Load Impedance |
OUTPUT (L/MONO, R): 10 k ohms or greater, PHONES: 44 ohms or greater |

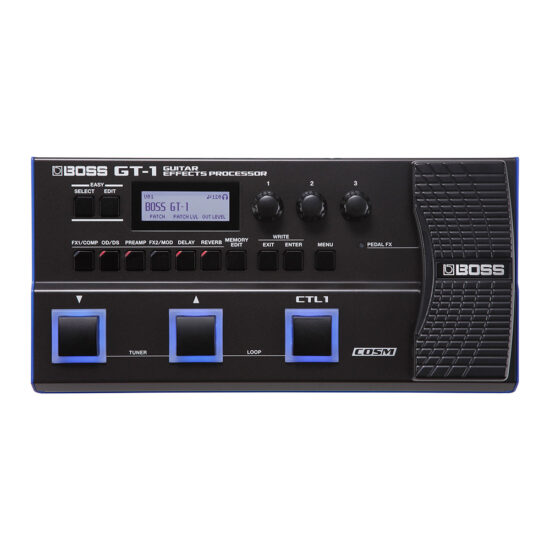

| Controls |
DOWN switch, UP switch CTL1 switch
EASY SELECT button, EASY EDIT button, FX1/COMP button, OD/DS button, PREAMP button, FX2/MOD button, DELAY button, REVERB button, MEMORY EDIT button, EXIT button, ENTER button, MENU button
1 knob, 2 knob, 3 knob
Expression pedal |
| Display |
Graphic LCD (132 x 32 dots, backlit LCD) |
| Connectors |
INPUT jack, OUTPUT (L/MONO, R)
jacks: 1/4-inch phone type
CTL2, 3/EXP2 jack: 1/4-inch TRS phone type
AUX IN jack: Stereo miniature phone type
USB COMPUTER port: USB type B
DC IN jack |
| Power Supply |
Alkaline battery (AA, LR6) x 4, AC adaptor (sold separately) |
| Current Draw |
200 mA |
| Expected battery life under continuous use |
Alkaline: Approx. 7 hours
* These figures will vary depending on the actual conditions of use. |
| Accessories
|
Owner’s manual
Leaflet “USING THE UNIT SAFELY”
Alkaline battery (AA, LR6) x 4 |
| Options (sold separately)
|
AC adaptor: PSA series
Footswitch: FS-5U, FS-5L, FS-6, FS-7
Expression Pedal: FV-500L, FV-500H, Roland EV-5 |
| Size and Weight |
| Width (W) |
305 mm |
| Depth (D) |
152 mm |
| Height (H) |
56 mm |
| Maximum height |
74 mm |
| Weight (including battery) |
1.3 kg |
