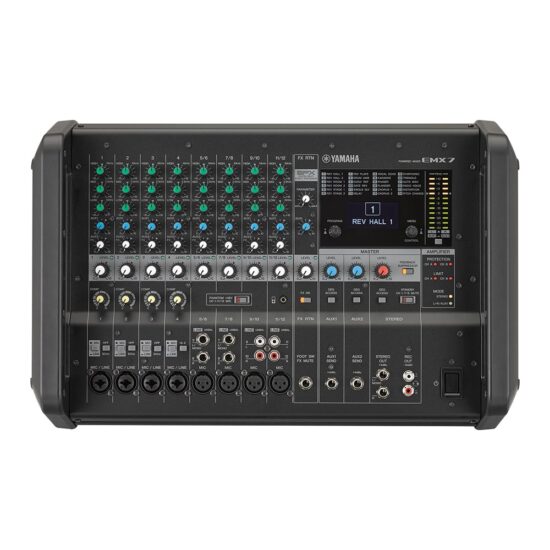

| Outline Yamaha EMX7 |
| I/O |
Inputs |
TOTAL 12 channels : 8 Mono (MIC/LINE), 4 Stereo (LINE) |
| Phantom power |
+48 V |
| Outputs |
SPEAKERS [A, B], AUX1 SEND, AUX2 SEND, STEREO OUT [L, R], REC OUT [L, R] |
| Bus |
Stereo: 1, AUX: 2 (Including FX) |
| Input Channel Function |
PAD |
30 dB (CH1-4) |
| Hi-Z |
Supported (CH4) |
| HPF |
80 Hz, -12 dB/oct. (CH1–3) |
| COMP |
1-knob COMP (CH1–4) |
| EQ HIGH |
10 kHz +15 dB / -15 dB (Shelving) |
| EQ MID |
2.5 kHz +15 dB / -15 dB (Peaking) |
| EQ LOW |
100 Hz +15 dB / -15 dB (Shelving) |
| On-board processors |
DSP |
SPX Algorithm 24 programs, Feedback suppressor, Graphic equalizer, Speaker processor |
| Ngoại tuyến |
| I/O |
Điều khiển và Khác |
FOOT SWITCH : Effect Mute on/off |
| Ampli tích hợp |
Công suất đầu ra tối đa @4ohms |
1kHz THD+N less than 10% (CEA2006) : 710 W + 710 W, 1kHz THD+N less than 1% (CEA2006) : 600 W + 600 W |
| Công suất đầu ra tối đa @8ohms |
1kHz THD+N less than 10% (CEA2006) : 500 W + 500 W, 1kHz THD+N less than 1% (CEA2006) : 400 W + 400 W |
| Level Meter |
2 × 12 points LED meter (-30, -25, -20, -15, -10, -6, -3, 0, +3, +6, +10, PEAK) |
| Thông số kỹ thuật chung |
| Đáp tuyến tần số |
Input to SPEAKERS : +1 dB/-3 dB (40 Hz to 20 kHz), Input to STEREO OUT, AUX1 SEND, AUX2 SEND : +0.5 dB/-1 dB (20 Hz to 20 kHz) , refer to the nominal output level @ 1 kHz |
| Mạch bảo vệ |
Bảo vệ tải |
DC-fault |
| Bảo vệ Ampli |
Over heat protection, Over current protection, Integral power protection |
| Bảo vệ nguồn điện |
Over heat protection, Over current protection |
| General specifications |
| Total harmonic distortion |
Input to SPEAKERS: MIC/LINE =LINE (CH1–4): 0.1% @ 10 W (40 Hz to 20 kHz), 0.04% @ 65 W (1 kHz) ; Input to STEREO OUT, AUX1 SEND, AUX2 SEND: MIC/LINE =LINE (CH1–4): 0.02% @ +14 dBu (20 Hz to 20 kHz), 0.007% @ +20 dBu (1 kHz), (THD+N, measured with 22 kHz LPF) |
| Hum & noise level |
Equivalent input noise |
-117 dBu (Noise is measured with A-weighting filter) |
| Residual output noise |
Input to SPEAKERS : -70 dBu(40Hz to 20kHz, STEREO MASTER LEVEL: min); Input to STEREO OUT, AUX1 SEND, AUX2 SEND : -82dBu(20Hz to 20kHz, STEREO MASTER LEVEL: min) (Noise is measured with A-weighting filter) |
| Crosstalk |
-85 dB (1 kHz, Measured with 1 kHz band pass filter) |
| Power requirements |
AC 100-240V, 50Hz/60Hz |
| General specifications |
45 W (Idle) / 250 W (1/8 Power) |
| Dimensions |
W |
465 mm (18 5/16″) |
| H |
308 mm (12 1/8″) |
| D |
325 mm (12 13/16″) |
| Net weight |
9.5 kg (20.9 lbs) |
| Accessories |
Owner’s Manual, Technical Specifications, AC power cord (2.5 m) |
| Options |
Foot switch: FC5, Rack-mount brackets: RK-EMX7 |
| Others |
Operating Temperature : 0 to +40℃ |
