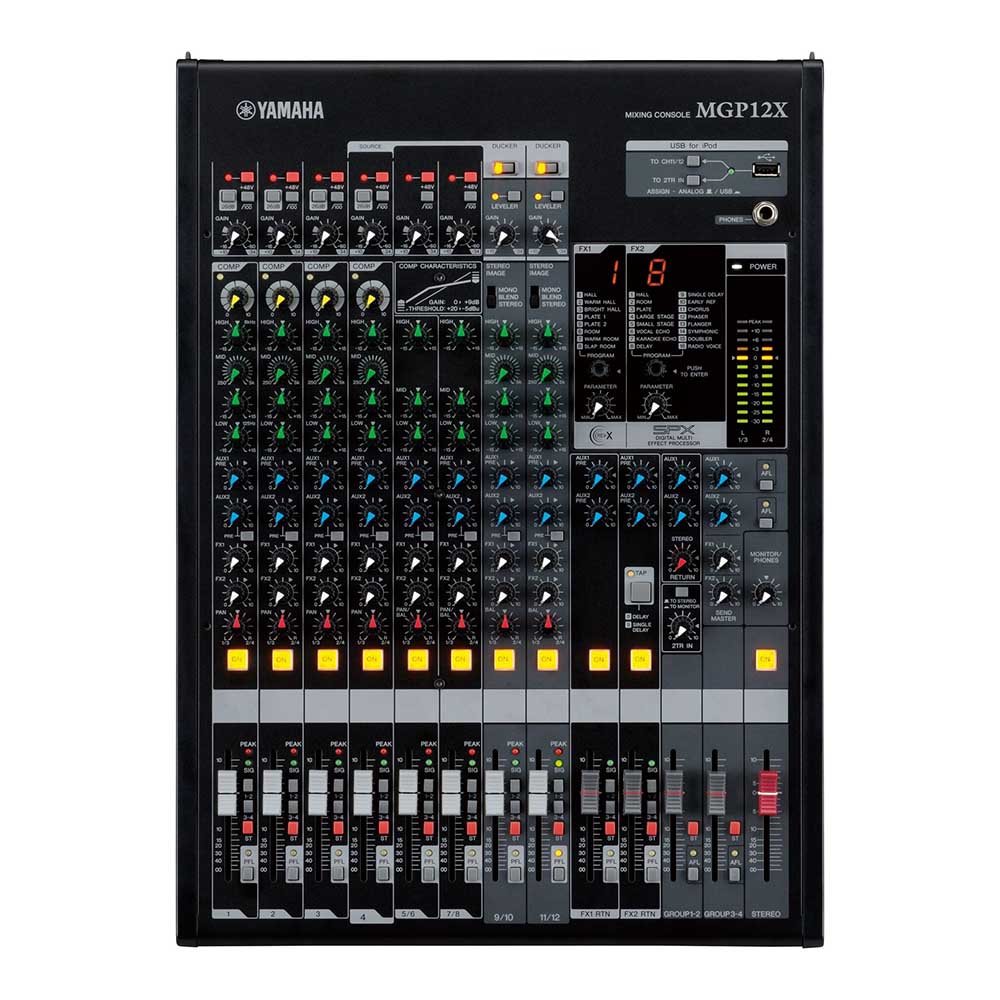

Mixer Yamaha MGP12X

19.910.000₫

Outline Yamaha MGP12X
Mixing capability	Mixing channels	12 Line Inputs (4 mono and 4 stereo)
	GROUP	4 GROUP Buses + ST Bus
	AUX	2 AUX Sends + 2 FX Sends
	MATRIX	–
	On-board processors	FX1:REV-X(8 PROGRAM, PARAMETER control), FX2:SPX (16 PROGRAM, PARAMETER control)
	Input channel functions	Compressor CH1-4,HPF(100Hz 12dB/oct), CH EQ(MONO) ±15dB(Max.):High 8kHz shelving/ Mid 250Hz-5kHz peaking(CH1-4,9-12)/ Low 125Hz shelving, CH EQ(STEREO) ±15dB(Max.):High 8kHz shelving/ Mid 2.5kHz peaking(CH5-8)/ Low 125Hz shelving
I/O	Mic inputs	MIC:6 (100Hz 12dB/oct)
	Phantom power	48V phantom power per channel
	Line inputs	LINE: 4mono+4stereo, CH INSERT IN: 4, RETURN: 1stereo, 2TR IN: 1 stereo
	Digital I/O	USB Audio USB IN: iPod, iPhone exclusive
General specifications
Total harmonic distortion		0.02% (20Hz-20kHz@ +14dBu)
Frequency response		+0.5/-1.0dB 20Hz – 20kHz, refer to the nominal output level @1kHz
Hum & noise level	Equivalent input noise	-128 dBu (20Hz–20 kHz, Rs=150Ω, Input Gain = Maximum)
Hum & noise level	Residual output noise	-102 dBu (20Hz–20 kHz, Rs=150Ω, Input Gain = Maximum)
Crosstalk		-74dB @ 1kHz
Power requirements		100-240V 50Hz/60Hz
General specifications		45W max
Dimensions	W	348mm
	H	143mm
	D	495mm
Net weight		7.5kg
