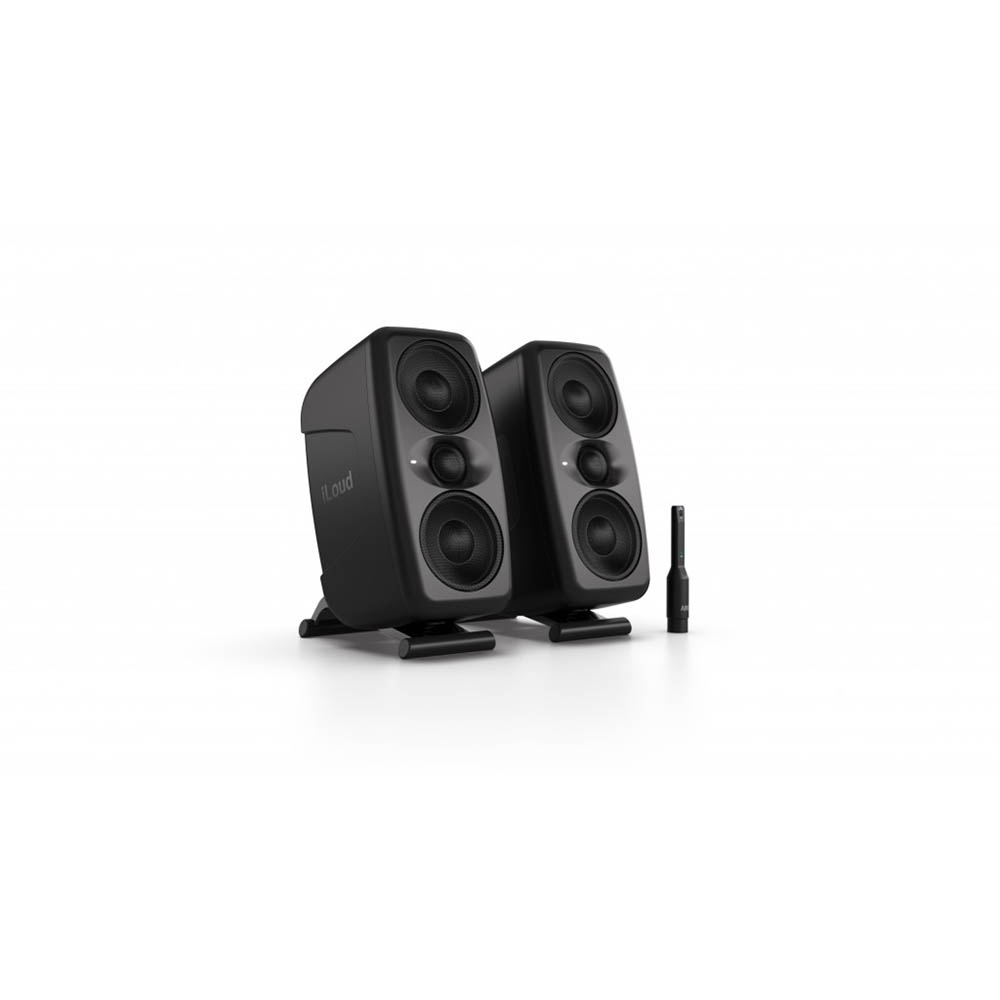

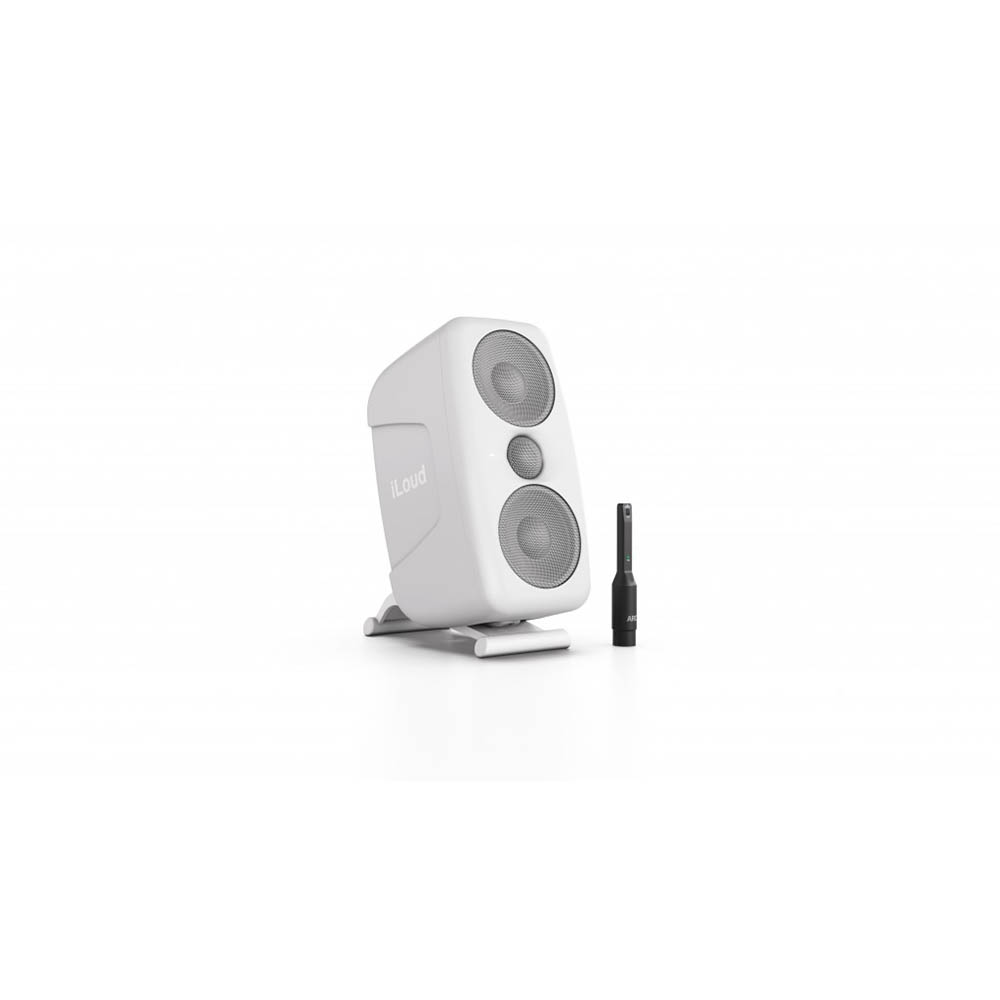

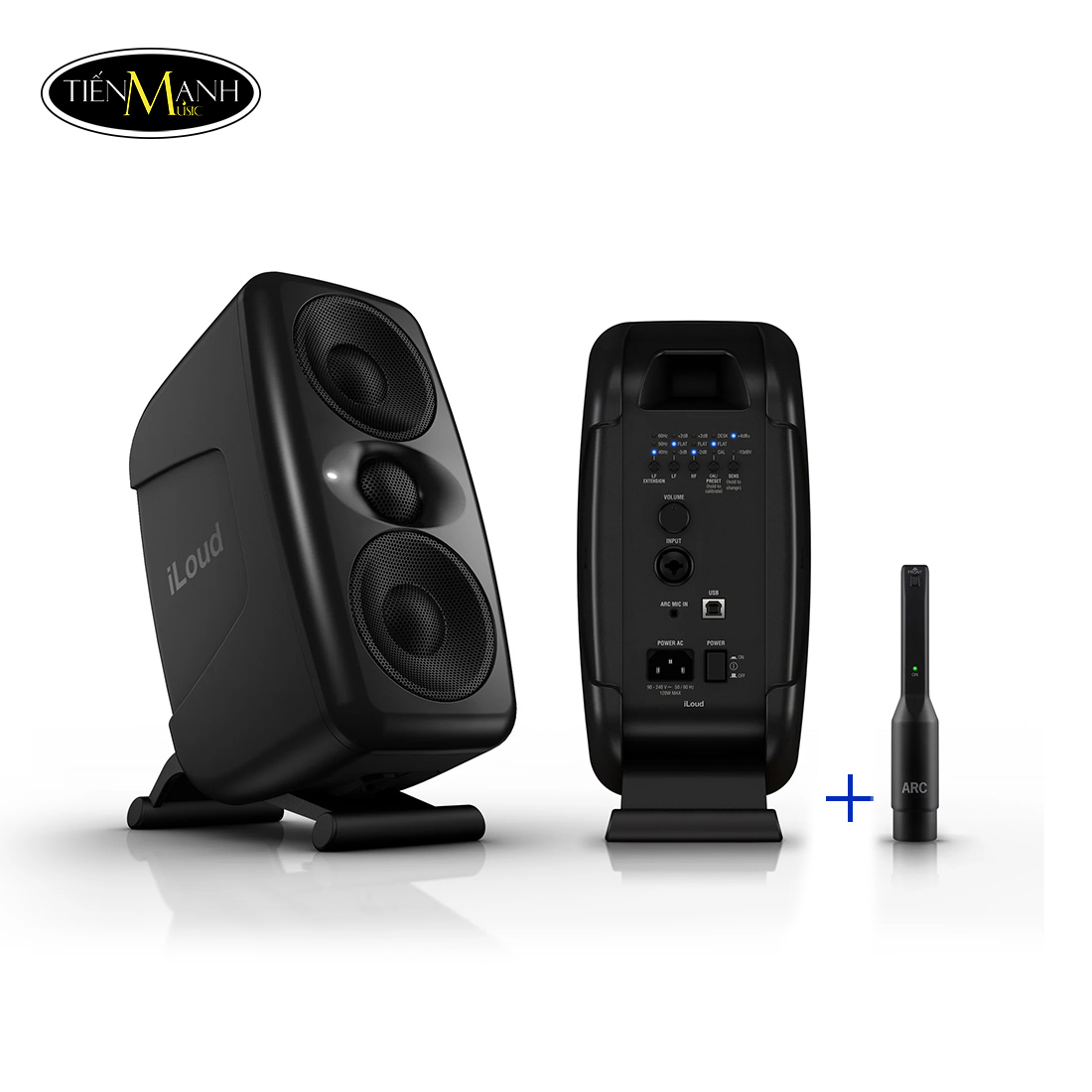

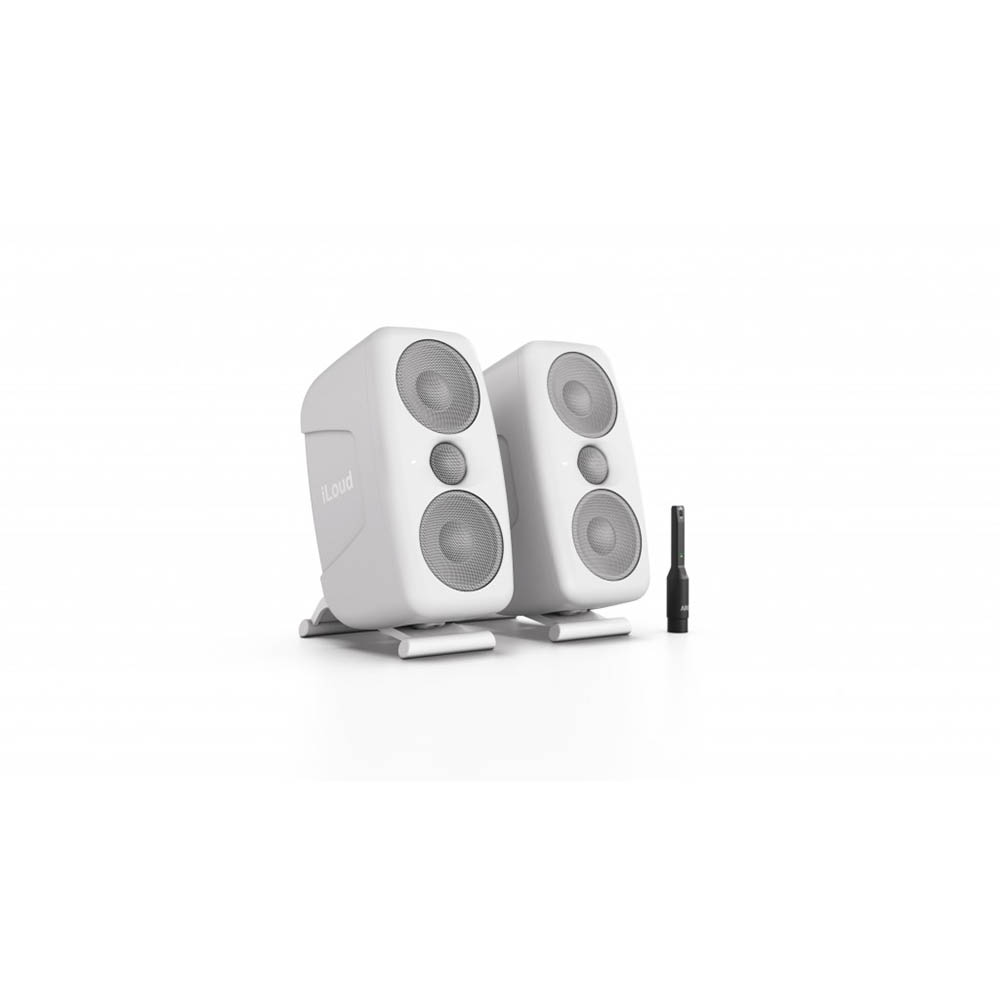

| Type |
2-Way/3-speakers bi-amped, digitally controlled studio monitor |

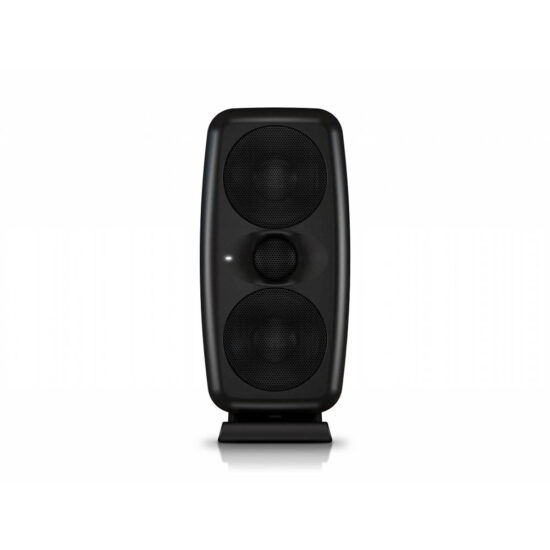

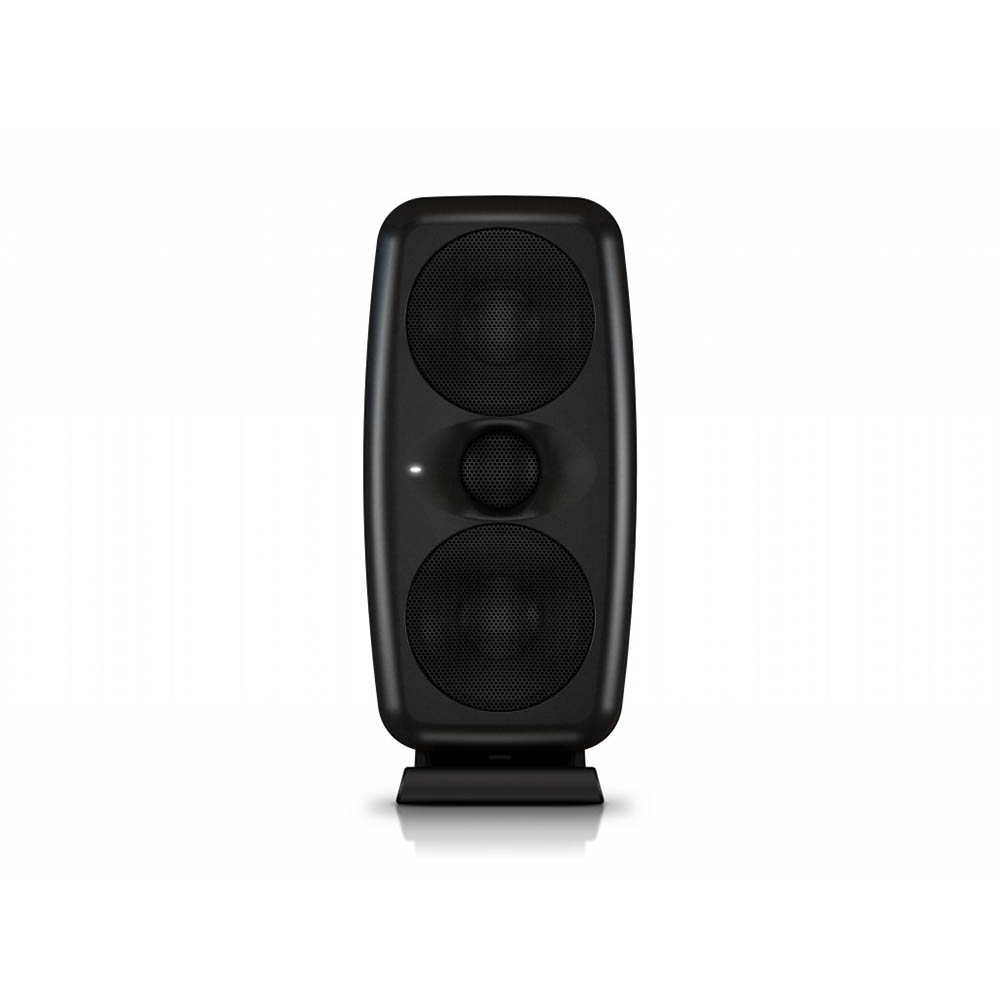

| LF Drivers |
2 x 3.5” polypropylene custom made mid-woofers |
| HF Driver |
1” low distortion, back chambered silk dome tweeter |
| Acoustic Design |
DSP tuned bass reflex |
| Number of amps per speaker |
2 |
| Amplifiers type |
High efficiency Class-D |
| Total power |
100W RMS |
| LF power |
70W RMS |
| HF power |
30W RMS |
| Crossover Type |
Linear Phase Variable Order |
| Crossover Frequency |
3.1kHz |
| Frequency response |
from 50 Hz to 24 kHz +/- 2dB (40 Hz -6dB when uncal, -3 dB when cal) |
| Phase response |
System remains coherent within +/- 15° from 200Hz to 20kHz |
| Sensitivity at +4dBu |
0dBu signal generates a 100 dB SPL @ 1 m |
| Sensitivity at -10dBV |
-11dBu signal generates a 100 dB SPL @ 1 m |
| Maximum SPL @ 1m, one speaker playing, on axis |
103dB from 200Hz up sine wave, 95dB at 100Hz sine, 93dB pink noise |
| Placement setup |
Manual switches for LF Extension, LF trim, HF trim, Desk position |
| LF extension |
switch Sets -3dB point of the frequency response at 40, 50 or 60 Hz |
| LF switch |
Low shelf, +2dB or -3dB from 100Hz down |
| HF switch |
high shelf, +2dB or -2dB from 8kHz up |
| Desk switch |
-4dB at 160Hz and +1dB at 1.8kHz |
| Calibration |
Fully automatic and built-in digital calibration, microphone included |
| Measurement Microphone |
Omnidirectional, Mems based precision measurement microphone |

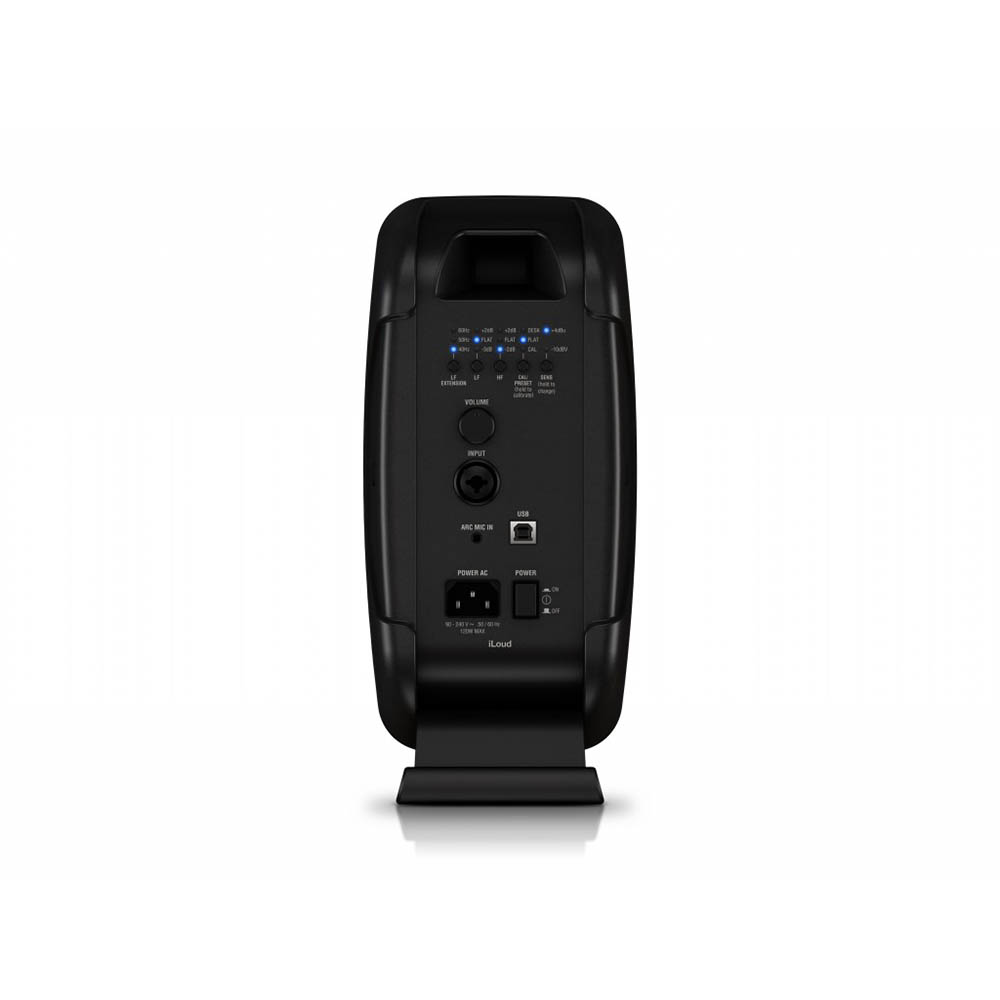

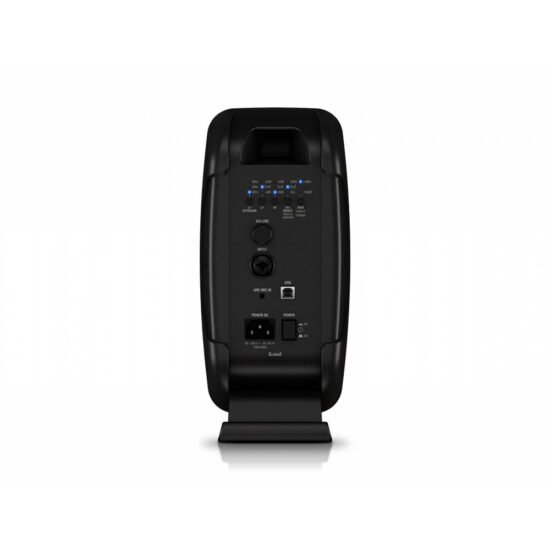

| Connectors |
1x combo XLR-1/4” TRS balanced input; 1/8” TS ARC microphone input, 1 x USB type-B (service use only), AC POWER socket |
| Power requirement |
90 to 240 V AC, auto-ranging, 50 or 60Hz, 120W max power consumption |
| Size |
264mm/10.39″ x 160mm/6.3″ x 130mm/5.12″ |
| Weight (per speaker) |
2,5kg/5.5lbs (speaker + foot) |
