IK Multimedia iRig Stream Pro Audio Interface , Box Livestream

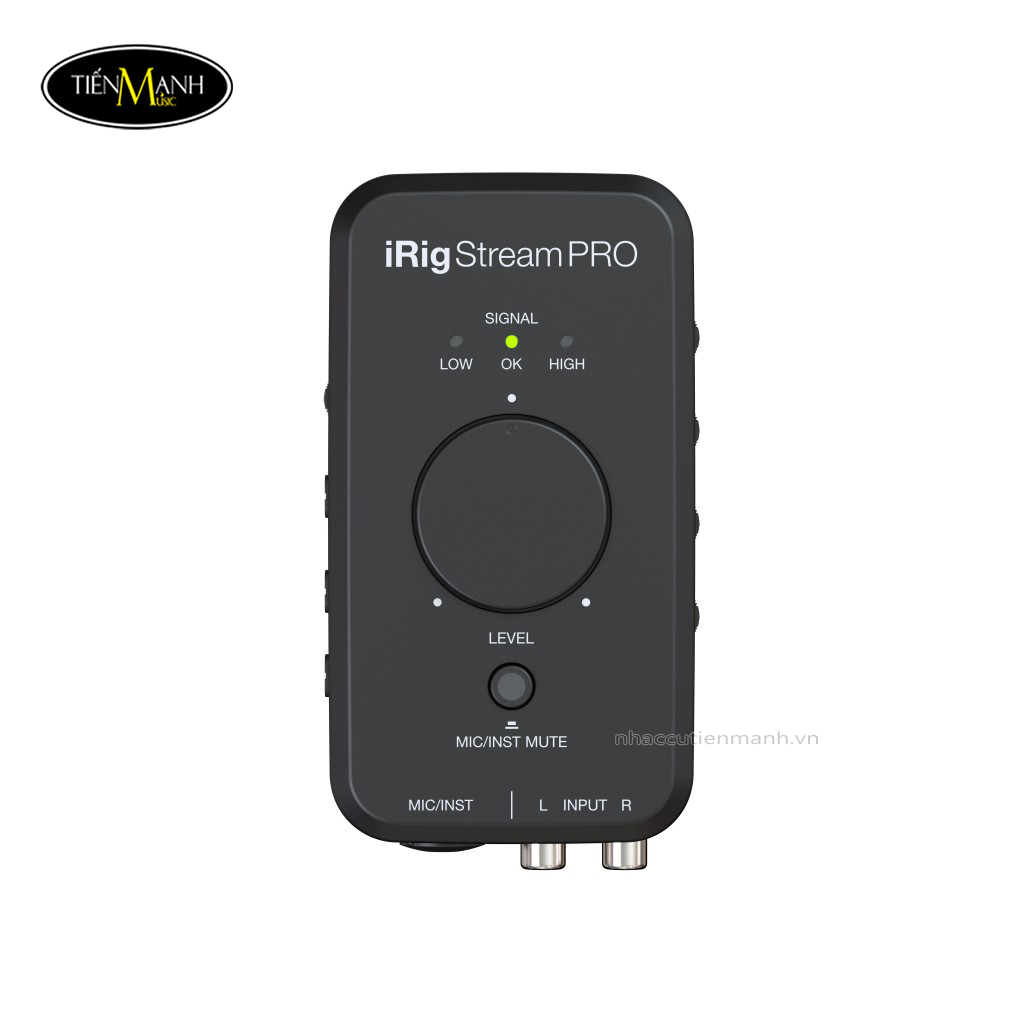

IK Multimedia iRig Stream Pro Audio Interface

Common

• Type: 2 in/2out or 4 in/2out
• Conversion: 24-bit A/D, 24-bit D/A
• Sampling Rate: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
• Power: USB bus powered. 48V operations with iOS devices require battery or DC IN. When connected to an external PSU (iRig PSU 3A, not included), iRig Stream Pro charges the connected iOS lightning device.
• Metering: 3x LEDs for overall streaming signal. Peak meter for Mic/Inst input.
• Device Connection: mini-DIN
• Dimensions: 123 mm/4.84” x 67 mm/2.63” x 40 mm/1.57”
• Weight: 146g

Line input

• Connector: 2x RCA (unbal.) Left/Right
• Nominal Input Level: -10 dBV
• Head Room: 10 dB – Level @ max
• Input Impedance: 16.5k Ohms
• Frequency Response: from 20 Hz to 20 kHz (-1.5 dB)

Microphone Input

• Microphone Input: balanced, XLR. Pin 2: hot / Pin 3: cold / Pin 1: ground
• Microphone Input Level: from 3.8 mV RMS to 388 mV RMS
• Microphone Input Impedance: approx 2 kOhms
• Analog Gain Range: 40 dB
• Phantom Power: +48 V ± 4 V
• Frequency Response:
  from 20 Hz to 20 kHz (-1 dB) Gain @ min
  from 20 Hz to 20 kHz (-3 dB) Gain @ max

Instrument Input

• Instrument Input: unbalanced, Hi-Z, TS 1/4” Jack, Tip: signal / Shield: ground
• Instrument Input Level: from 70 mV RMS to 1.8 V RMS
• Instrument Input Impedance: 1M Ohms
• Analog Gain Range: 28 dB
• Frequency Response:
  from 20 Hz to 20 kHz (-1 dB) Gain @ min
  from 20 Hz to 20 kHz (-3 dB) Gain @ max

Headset/Phones

• Connector: 1/8” TRRS jack (CTIA wiring standard)
• Supply voltage: > 2,5 V
• Microphone gain: Adjustable with numbered thumbwheel
• Frequency Response: 20 Hz – 20 kHz
• Headphone Level control: numbered thumbwheel

Battery Life

• Phantom power On with iOS device: up to 20 hours (Alkaline batteries), with mic input connected to 3.1 mA phantom powered load

Package includes

• iRig Stream Pro interface
• Lightning to mini-DIN connection cable with charging features (60cm/23.62″)
• USB C-Type to mini-DIN connection cable (60cm/23.62″)
• USB A-Type to mini-DIN connection cable (60cm/23.62″)
• 2x 1.5V AA battery
• Velcro strip
