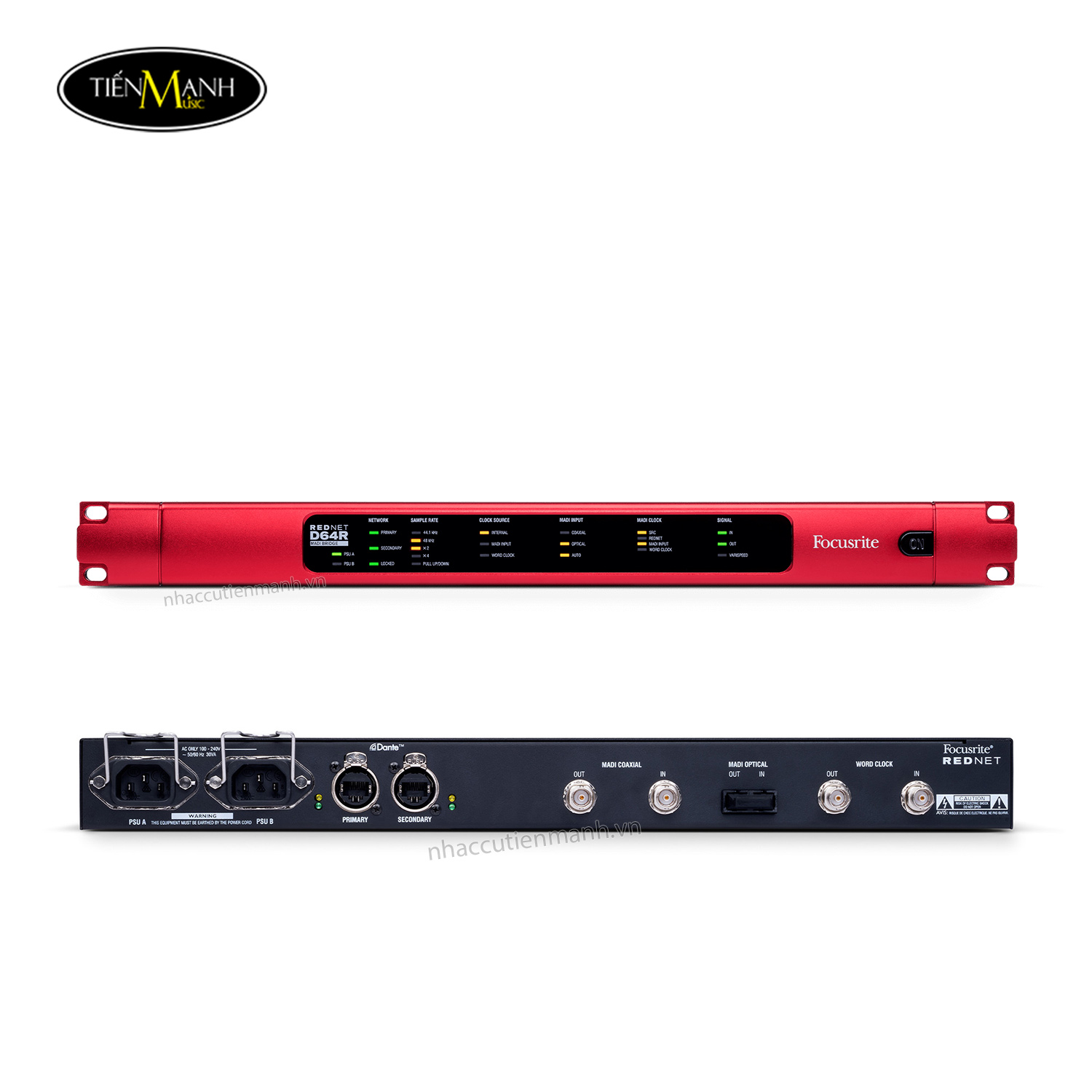

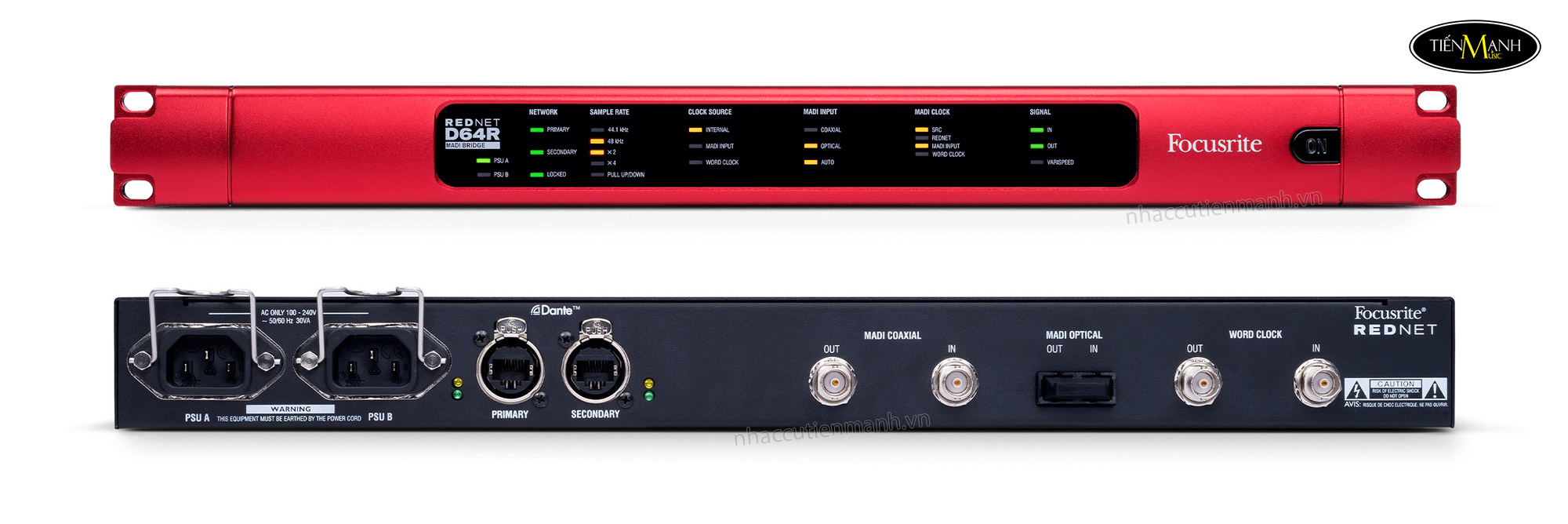

Focusrite Rednet D64R 64 Ch MADI Bridge For DANTE

Single Rate: 64 (56)
Double Rate: 32 (28)
Quad Rate: 16 (14)

Power: on/off

Supported Sample Rates: 44.1, 48, 88.2, 96, 176.4, 192 kHz (-4, -0.1, +0.1, +4.167%) at 24 bit
Clock Sources: Internal, MADI, or from Dante Network Master
Ext. Word Clock Range: nominal sample rate ±7.5%

Lock Range: 41 to 216 kHz (MADI)
Gain Error: -0.01 dB
Sample Rate Ratio Limit: 6:1
THD: -130 dB (typical)
THD + N: < -130 dB (0.00003%); 0 dBFS input
Latency: 43 to 192 samples (sample-rate dependent)
Dynamic Range: > 139 dB (-60 dBFS method)
MADI Clock Sources: RedNet, MADI Input, and Word Clock

Electrical Standard: as per AES10:2008
Connector: BNC 75 ohms
Recommended Cable: 75-ohm characteristic impedance

Optical Standard: as per AES10:2008 (ISO/IEC 9314-3, FDDI, ANSI X3.166)
Recommended Cable: multi-mode, graded-index, 62.5 µm core, 125 µm cladding
Connector: Duplex-SC (Single Mode available from manufacturer)

Green LED power indicator
Network Status: Primary/Secondary/Locked
PSU: A/B
Sample rate: 44.1/48 kHz, x 2, x 4, Pull
Clock Source: Internal, MADI, Word Clock
MADI Input: Coax, Optical, Auto
Clock Source: SRC, RedNet, MADI Input, Word Clock
Signal: In, Out, Varispeed

2 x internal; IEC inputs, 100 to 240 VAC, 50/60 Hz
Apparent Power: 30 VA

1.7 x 19 x 12.1″ / 4.4 x 48.3 x 30.8 cm

9.5 lb / 4.3 kg

12 lb

23.8 x 17.1 x 4.6″
