Focusrite Rednet 5 32 x 32 Ethernet Audio Network Digital I/O for Pro Tools HD

Focusrite Rednet 5 32 x 32 Ethernet Audio Network Digital I/O for Pro Tools HD

Digital Performance

• Supported Sample Rates: 44.1/48/88.2/96/176.4/192 kHz (-4 / -0.1 / 0.1 / 4.167) at 24-bit
• Clock Sources: Internal, Word Clock, Loop Sync (master or slave) or from Dante Network Master
• External Word Clock Range: Nominal sample rate ±7.5
• Channel Count: 32×32 at up to 96kHz sampling rate, 16×16 at 176.4 and 192kHz

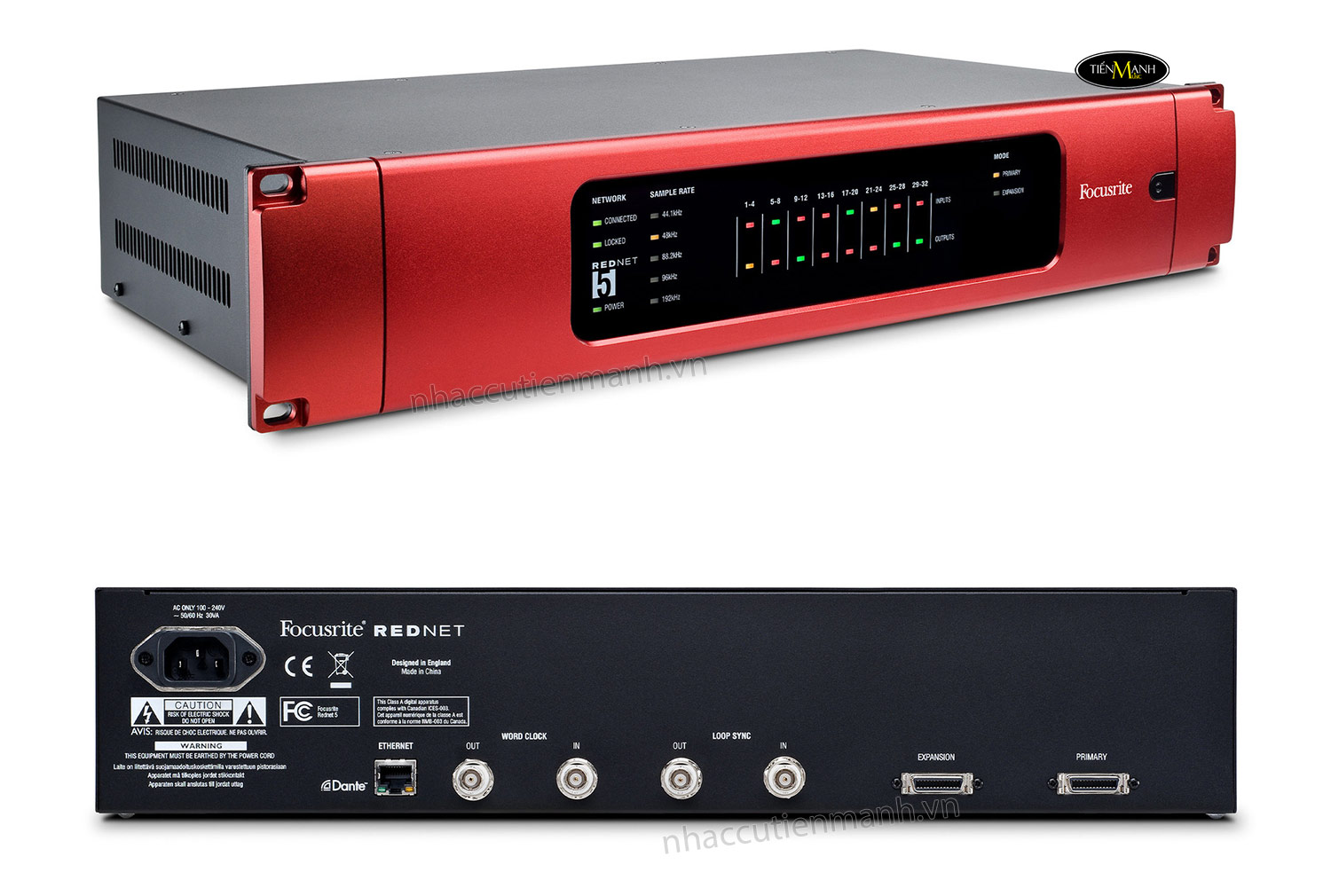

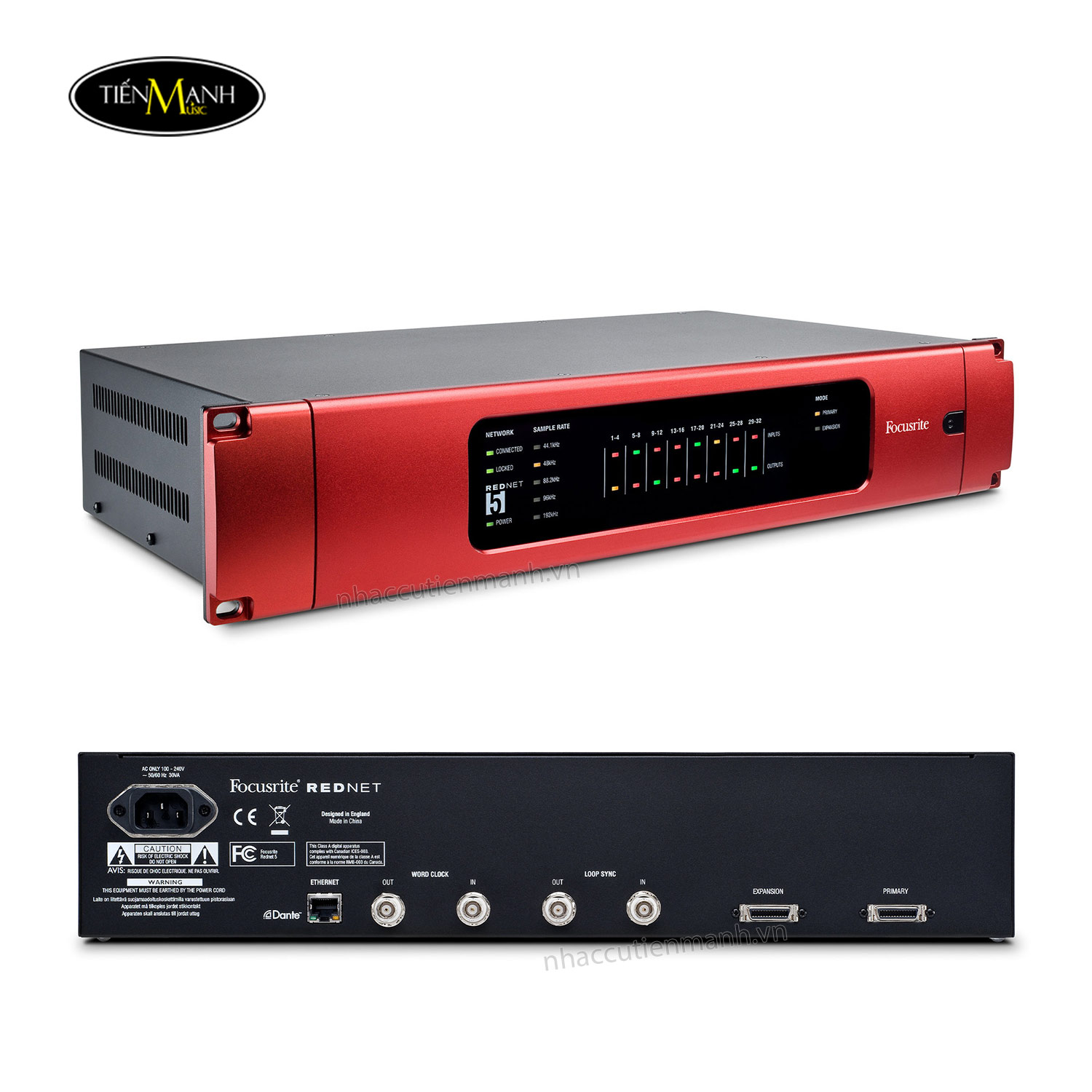

Rear Panel Connectivity

• Primary Port: 1 x Mini DigiLink
• Expansion Port: 1 x Mini DigiLink
• Word Clock Input: 1 x BNC 75 ohm port (switchable termination)
• Word Clock Output: 1 x BNC 75 ohm port
• PSU: 2 x IEC Inputs with retaining clips
• Network: 2 x etherCON NE8FBH-S, also compatible with standard RJ45 connectors

Front Panel Indicators

• Primary PSU (A): Green LED. Illuminates when an AC input is applied and all DC outputs are present
• Primary PSU (B): Green LED. Illuminates when an AC input is applied and all DC outputs are present
• Primary Network: Green LED. Indicates that a network connection is present on primary port when in redundant mode
• Secondary Network: Green LED. Indicates that a network connection is present on secondary port when in redundant mode
• Network Locked: Green LED. When unit is network slave, shows valid network lock. When unit is network master
• Sample Rate: Orange LED for each: 44.1kHz, 48kHz, x2, x4
• Pull Up/Down: Orange LED. Indicates unit is set to operate on a Dante pull up/down domain
• Signal Indicators: 16 Green LEDs, 8 input/8 output indicators. Illuminate @ -126dBFS
• Clock Source: Orange LED for each: Internal, Word Clock, Loop Sync and DAW Master

Network Modes

• Redundant: Allows unit to connect two independent networks
• Switched: Connects both ports to integrated network switch allowing daisy-chaining of device

Dimensions

• Height: 1-3/4″ / 44.5 mm
• Width: 19″ / 482.6 mm
• Depth: 10-5/8″ / 263 mm

Weight

• Weight: 8.6 lb. / 3.9 kg

Power

• Power PSU: 2 x Internal, 100-240V, 50/60Hz, consumption 30VA

Heat Performance

• Operating Temperature: Operates at up to an ambient temperature of 50 degrees Celsius
