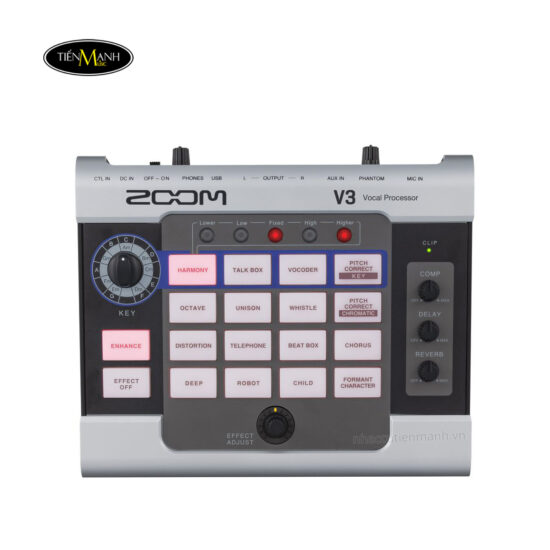

Zoom V3 Vocal Processor – Hiệu Ứng Diễn Live – Soundcard
Zoom V3 Vocal Processor – Hiệu Ứng Diễn Live – Soundcard
Effects
| EFFECTS: |
16 types |
| CONCURRENT EFFECTS: |
5 |
| SAMPLING FREQUENCY: |
44.1 kHz |
| A/D CONVERSION: |
24-bit 128× oversampling |
| D/A CONVERSION: |
24-bit 128× oversampling |
| SIGNAL PROCESSING: |
32-bit |
| FREQUENCY RESPONSE: |
20 Hz–20 kHz (+1 dB/−3 dB) (10 kΩ load) |
INPUTS
| MIC IN: |
XLR jack |
| INPUT GAIN: |
+3 – +40 dB |
| MAXIMUM INPUT LEVEL: |
+4 dBu |
| INPUT IMPEDANCE: |
3 kΩ or higher (1 kHz) |
| PHANTOM POWER: |
+48 V |
| AUX IN: |
Stereo mini jack |
| RATED INPUT LEVEL: |
−10 dBu |
| INPUT IMPEDANCE (LINE): |
22 kΩ |
OUTPUTS
| L/R OUT: |
Unbalanced TS jacks |
| MAXIMUM OUTPUT LEVEL: |
+6 dBu |
| OUTPUT IMPEDANCE: |
100 Ω |
| PHONES: |
Stereo mini jack |
| MAXIMUM OUTPUT LEVEL: |
20 mW + 20 mW (into 32 Ω load) |
| EQUIVALENT INPUT NOISE (WHEN PHANTOM POWER OFF): |
–125 dBu or less (A-weighted, 150 Ω input, +40 dB input gain) |
| NOISE FLOOR (RESIDUAL NOISE): |
–75 dBu |
| CONTROL INPUT: |
FS01/FP02M input |
POWER
| POWER: |
AC adapter (9 V DC 500 mA, center negative) (ZOOM AD-16) 4 AA batteries (about 3.5 hours continuous operation time when using alkaline batteries) |
| USB: CONNECTOR: |
Micro USB |
| AUDIO INTERFACE OPERATION: |
2-in/2-out USB2.0 Full Speed, 44.1 kHz, 16/24/32-bit |
|
Power can also be supplied through the USB port. |
|
When using a cable designed only for power, other USB functions cannot be used. |
WEIGHTS AND DIMENSIONS
| EXTERNAL DIMENSIONS: |
150 mm (D) × 190 mm (W) × 50 mm (H) |
| WEIGHT: |
0.59 kg (excluding batteries) |
5500000
Zoom V3 Vocal Processor – Hiệu Ứng Diễn Live – Soundcard
Trong kho
Chưa có đánh giá nào.
