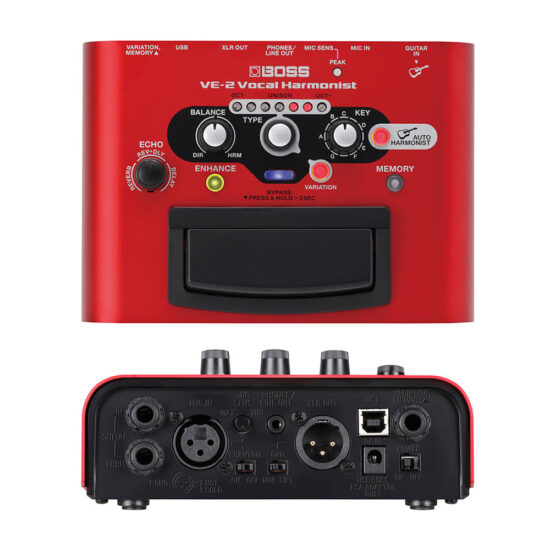

MIC IN jack: XLR type, balanced, phantom power (DC 48 V, 10 mA Max)
GUITAR IN jack: 1/4-inch phone type
GUITAR THRU jack: 1/4-inch phone type
XLR OUT jack: XLR type
PHONES/LINE OUT jack: Stereo miniature phone type
VARIATION, MEMORY INC jack: 1/4-inch TRS phone type
USB COMPUTER port: USB type B
DC IN jack
Power Supply
Rechargeable Ni-MH battery (AA, HR6) x 4
Alkaline battery (AA, LR6) x 4
AC Adaptor (sold separately)
Current Draw
200 mA Max. (9 V)
Expected battery life under continuous use:
Rechargeable Ni-MH battery(*1): Approx. 12 hours (phantom power: OFF), Approx. 8 hours (phantom power: ON)
Alkaline battery: Approx. 11 hours (phantom power: OFF), Approx. 7 hours (phantom power: ON)*1 When using batteries having a capacity of 2,450 mAh. * These figures will vary depending on the specifications of the batteries and the actual conditions of use.
Accessories
Owner’s Manual
Leaflet “USING THE UNIT SAFELY”
Alkaline Battery (AA, LR6) x 4
Options (sold separately)
AC Adaptor (PSA series)
Footswitch (FS-5U, FS-6, FS-7)
Size and Weight
Width
156 mm
6-3/16 inches
Depth
116 mm
4-5/8 inches
Height
64 mm
2-9/16 inches
Weight
600 g
1 lbs. 6 oz.
* 0 dBu = 0.775 Vrms
ASIO
ASIO is a trademark and software of Steinberg Media Technologies GmbH.
