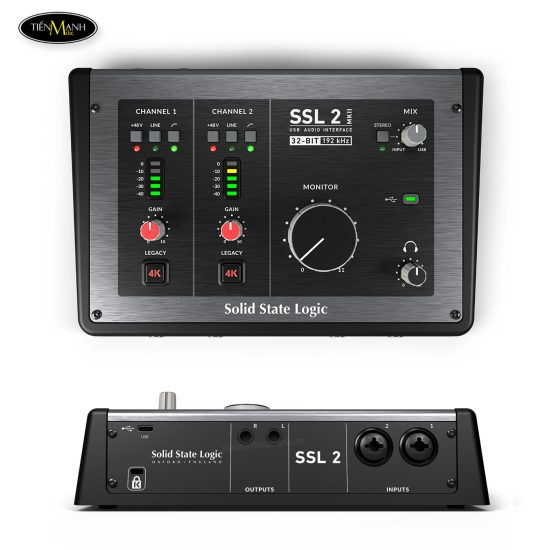

Soundcard Solid State Logic SSL2 – MKII USB-C Audio Interface

Soundcard Solid State Logic SSL2 – MKII USB-C Audio Interface

System Requirements and Specs
Mac OS 12 and above | Class-Compliant, Plug-and-play,
Windows 10, Windows 11 Install included ASIO/WDM driver

Connectivity
USB 2.0 Type C Connector (Box includes Type C to C and Type C to A)

Mic Preamps
-130.5 dBu EIN A-weighted
Gain range 64 dB
Dynamic range 116.5 dB A-weighted

Instrument Inputs
Dynamic Range: 116 dB A-weighted
Max Instrument Input Level: +15 dBu

Line Inputs

Dynamic Range: 117 dB A-weighted
Max Line Input Level: +24 dBu

Balanced Outputs
Dynamic Range: 120 dB
Max Output Level: +14.5 dBu

Headphone Outputs
Dynamic Range: 119.5 dB A-weighted
Max Output: +13 dBu

For the complete list of technical specifications please refer to the user guide
