| SPECIFICATIONS |
|
| Sampling Frequency |
96 kHz |
| AD/DA conversion |
32 bits |
| Processing |
32-bit floating point |
| Memory |
250 (User) + 250 (Preset) |
| Phrase loop |
38 sec. (MONO) |
|
19 sec. (STEREO) |
|
Tuner internal detection |
|
+/- 0.1 cent |
| Normal input level |
INPUT L/MONO, R: -10 dBu |
|
RETURN 1, RETURN 2: -10 dBu |
| Maximum input level |
INPUT L/MONO, R: +12 dBu |
|
RETURN 1, RETURN 2: +12 dBu |
| Input impedance |
INPUT L/MONO, R: 2 M ohms |
|
RETURN 1, RETURN 2: 1 M ohm |
| Normal output level |
OUTPUT L/PHONES, R/MONO: -10 dBu |
|
SEND 1, SEND 2: -10 dBu |
| Maximum output level |
OUTPUT L/PHONES, R/MONO: +12 dBu |
|
SEND 1, SEND 2: +12 dBu |
| Output impedance |
OUTPUT L/PHONES, R/MONO: 44 ohms |
|
SEND 1, SEND 2: 1 k ohm |
| Recommended load impedance |
OUTPUT L/PHONES, R/MONO: 10 k ohms or greater (Phones: 44 ohms or greater) |
|
SEND 1, SEND 2: 10 k ohms or greater |

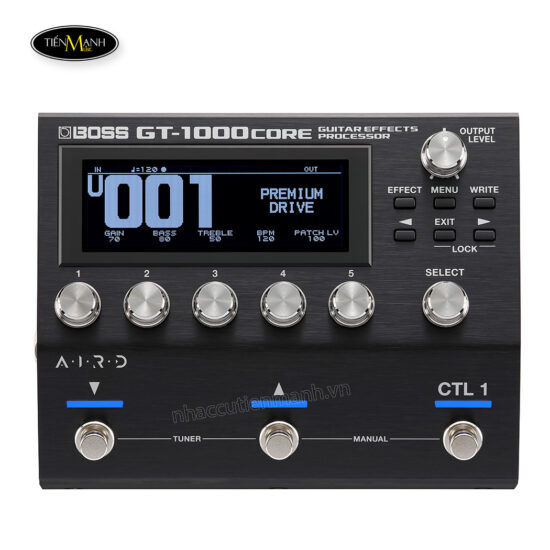

| Controls |
DOWN switch, UP switch, CTL 1 switch |
|
EFFECT button, MENU button, EXIT button, WRITE button, PAGE button |
|
1-5 knobs, SELECT knob, OUTPUT LEVEL knob |
| Display |
Graphic LCD 256 x 80 dots |
| Indicators |
UP indicator, DOWN indicator, CTL 1 indicator |

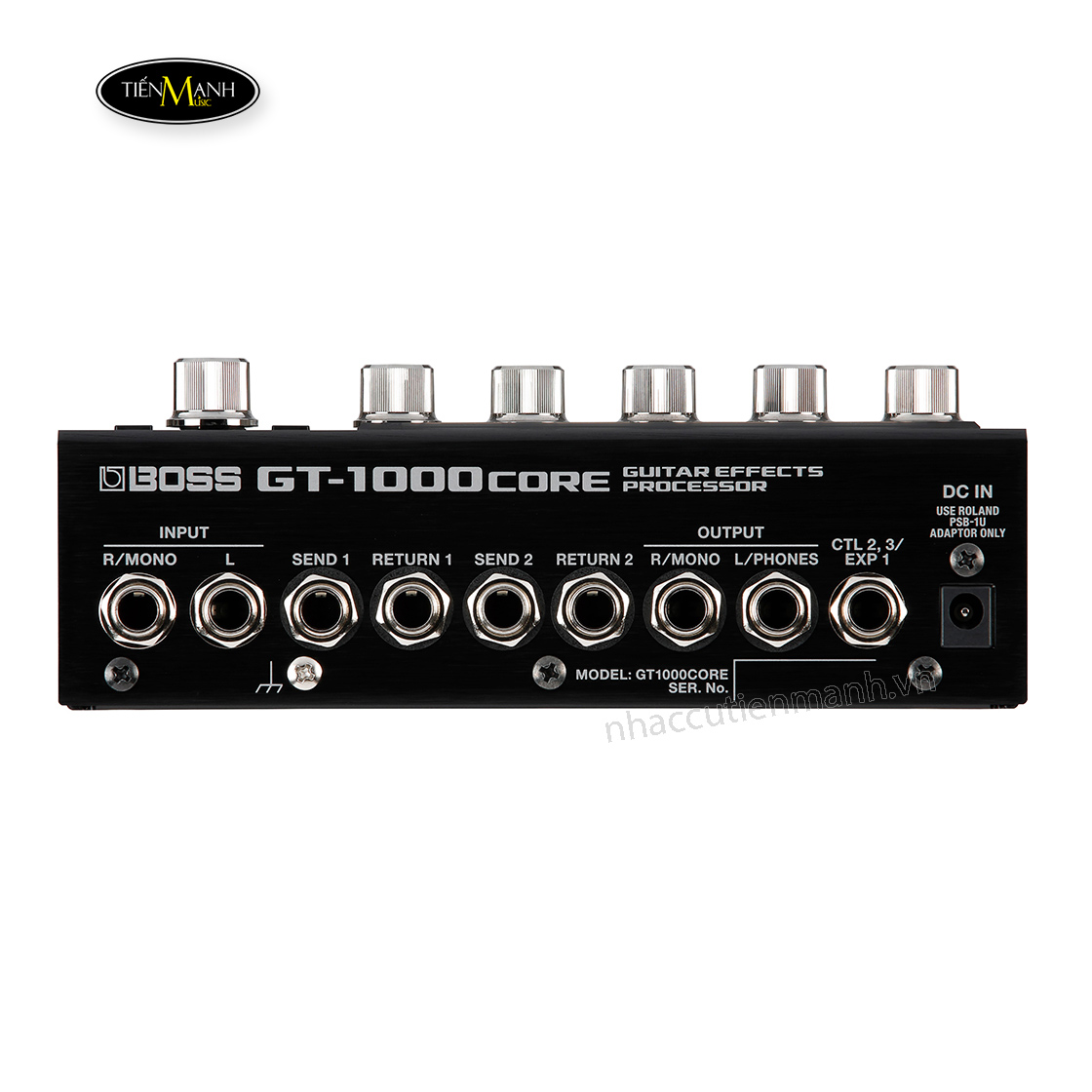

| Connectors |
INPUT (L/MONO, R), OUTPUT (R/MONO) jacks: 1/4-inch phone type |
|
OUTPUT (L/PHONES) jack: 1/4-inch TRS phone type |
|
CTL 2, 3/EXP 1､CTL 4, 5/EXP 2 jacks: 1/4-inch TRS phone type |
|
MIDI (IN, OUT) connectors: Stereo miniature phone type |
|
USB COMPUTER port: USB Micro-B type |
|
DC IN jack |
| Power supply |
AC adaptor |
| Current draw |
670 mA |
| Accessories |
AC adaptor |
| Owner’s manual |
Leaflet “USING THE UNIT SAFELY” |
|
Rubber foot x 4 |
| Options (sold separately) |
Footswitch: FS-5U |
|
Dual footswitch: : FS-6, FS-7 |
|
Expression pedal: FV-500H, FV-500L, EV-30, Roland EV-5 |
|
TRS/MIDI cable: BMIDI-5-35 |
