Micro Không Dây Xvive Audio U9 Violin Wireless System with Travel Case (2.4 GHz)
- 2.4 GHz wireless system with a 142 dB SPL supercardioid microphone
- High-resolution 24-bit/48 kHz audio, less than 5 ms latency
- 20 Hz – 20 kHz frequency response
- Dynamic range of 108 dB, signal-to-noise ratio of 108 dB
- Up to 5 hours of battery life
- 6 wireless channels
- Wireless range: up to 90 feet (27 m)

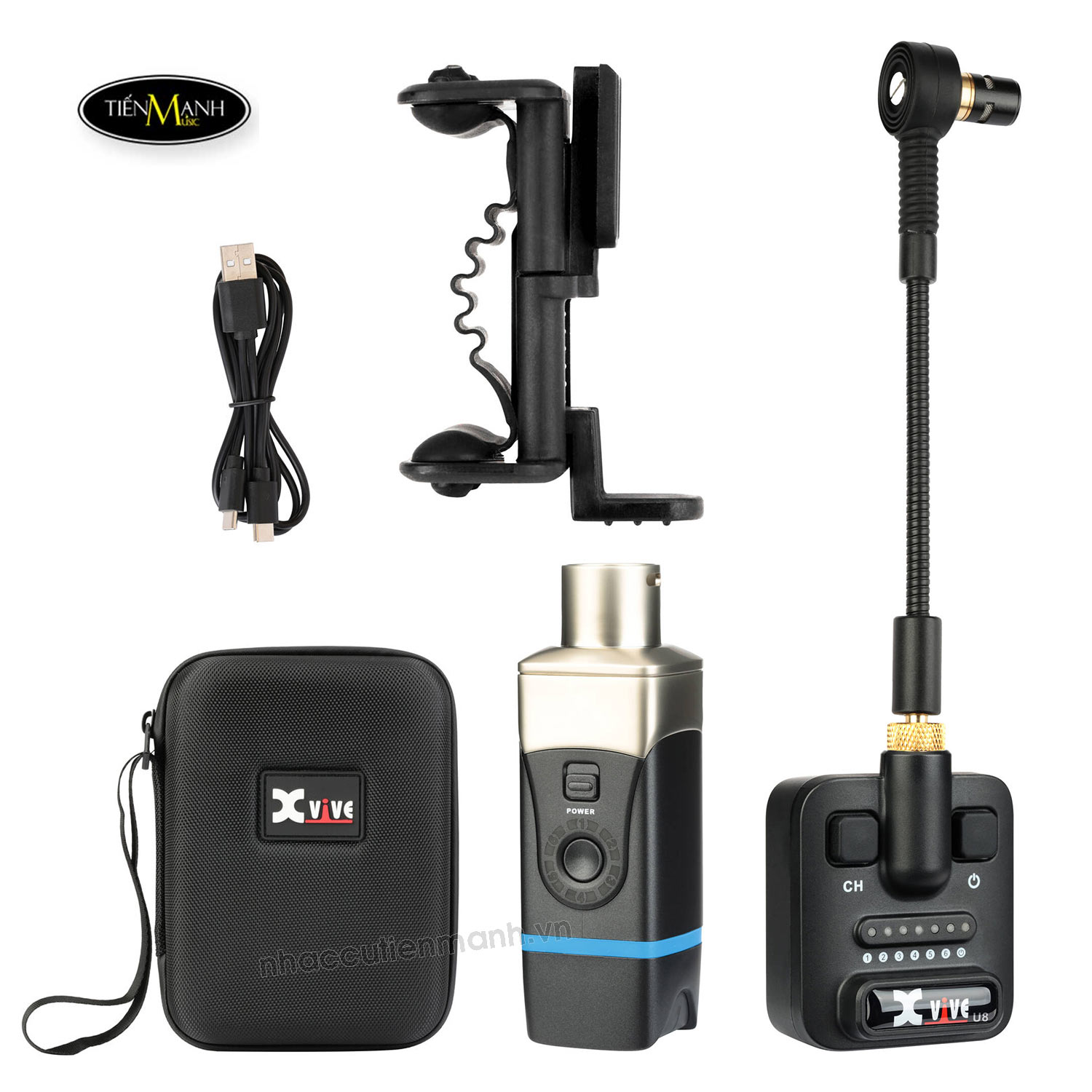

- Includes transmitter, receiver, microphone, clip, USB-C cable, foam windscreen and fur windshield, carry case
Micro Không Dây Xvive Audio U9 Violin Wireless System with Travel Case (2.4 GHz)
Micro Không Dây Xvive Audio U9 Violin Wireless System with Travel Case (2.4 GHz)
Microphone Specifications
| MICROPHONE TYPE |
Supercardioid |
| DIMENSIONS |
20 mm x 28 mm x 190 mm |
| WEIGHT |
35 g |
| OUTPUT PLUG |
1/8” balanced male TRS (Tip = +3.3V, Ring = -3.3V, Sleeve = ground) |
| SENSITIVITY |
-45 dB |
| MAX. SPL |
142 dB |
Wireless System Specifications
| TUNING BANDWIDTH |
2400 – 2483.5 MHz |
| WORKING RANGE |
90 ft (indoors) |
| FREQUENCY RESPONSE |
20 Hz – 20 kHz (-3dB) |
| DYNAMIC RANGE |
108 dB |
| SIGNAL-TO-NOISE RATIO |
108 dB |
| RF SENSITIVITY |
-88 dBm |
| TOTAL HARMONIC DISTORTION |
0.2% |
| RF OUTPUT POWER |
10 mW E.I.R.P. max |
| OPERATING TEMPERATURE RANGE |
0°C to 45°C |
| CHANNEL COUNT |
6 |
| CHARGING VOLTAGE / CURRENT |
5V / 2A |
| BIT DEPTH / SAMPLE RATE |
24-bit / 48 kHz |
| LATENCY |
less than 5 ms |
Transmitter Specifications
| DIMENSIONS |
40 mm x 29 mm x 50 mm |
| WEIGHT |
35 g |
| AUDIO INPUT CONNECTOR |
1/8” balanced TRS female |
| MAXIMUM INPUT LEVEL |
3.7 Vp-p |
| PHANTOM POWER |
± 3.3V |
| USB TYPE |
USB Type-C |
| ANTENNA IMPEDANCE |
50 Ω |
| ANTENNA TYPE |
1/4 wave sleeve dipole, non-removable |
| NUMBER OF ANTENNAS |
1 |
Receiver Specifications
| DIMENSIONS |
31 mm x 29 mm x 98 mm |
| WEIGHT |
92 g |
| OUTPUT IMPEDANCE |
470 Ω (1 kHz) |
| AUDIO OUTPUT CONNECTOR |
XLR balanced male |
| MAXIMUM OUTPUT LEVEL |
3.6 Vp-p |
| USB TYPE |
USB Type-C |
| ANTENNA IMPEDANCE |
50 Ω |
| ANTENNA TYPE |
1/4 wave sleeve dipole, non-removable |
| NUMBER OF ANTENNAS |
2 |
4999000
Micro Không Dây Xvive Audio U9 Violin Wireless System with Travel Case (2.4 GHz)
Trong kho
