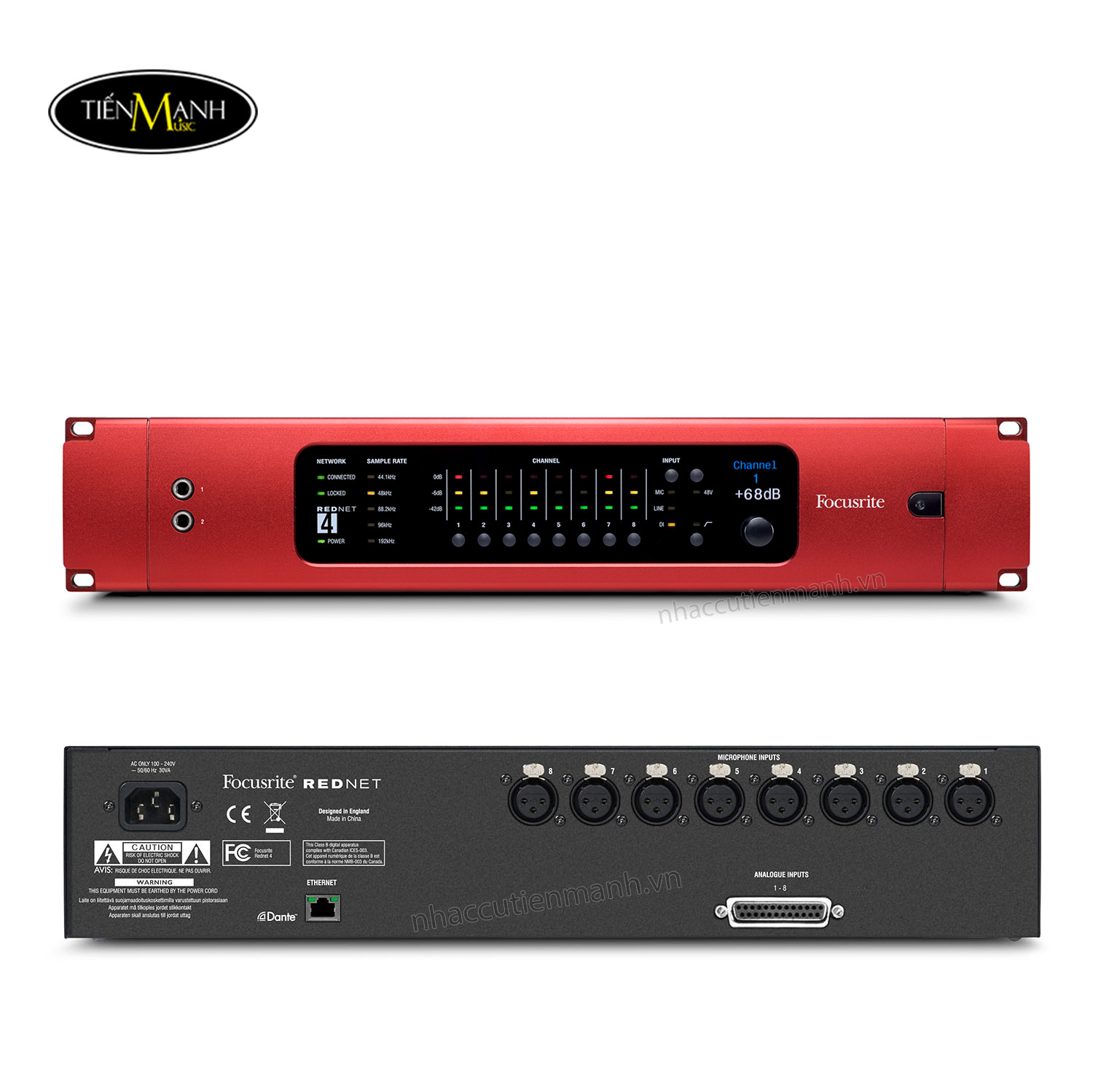

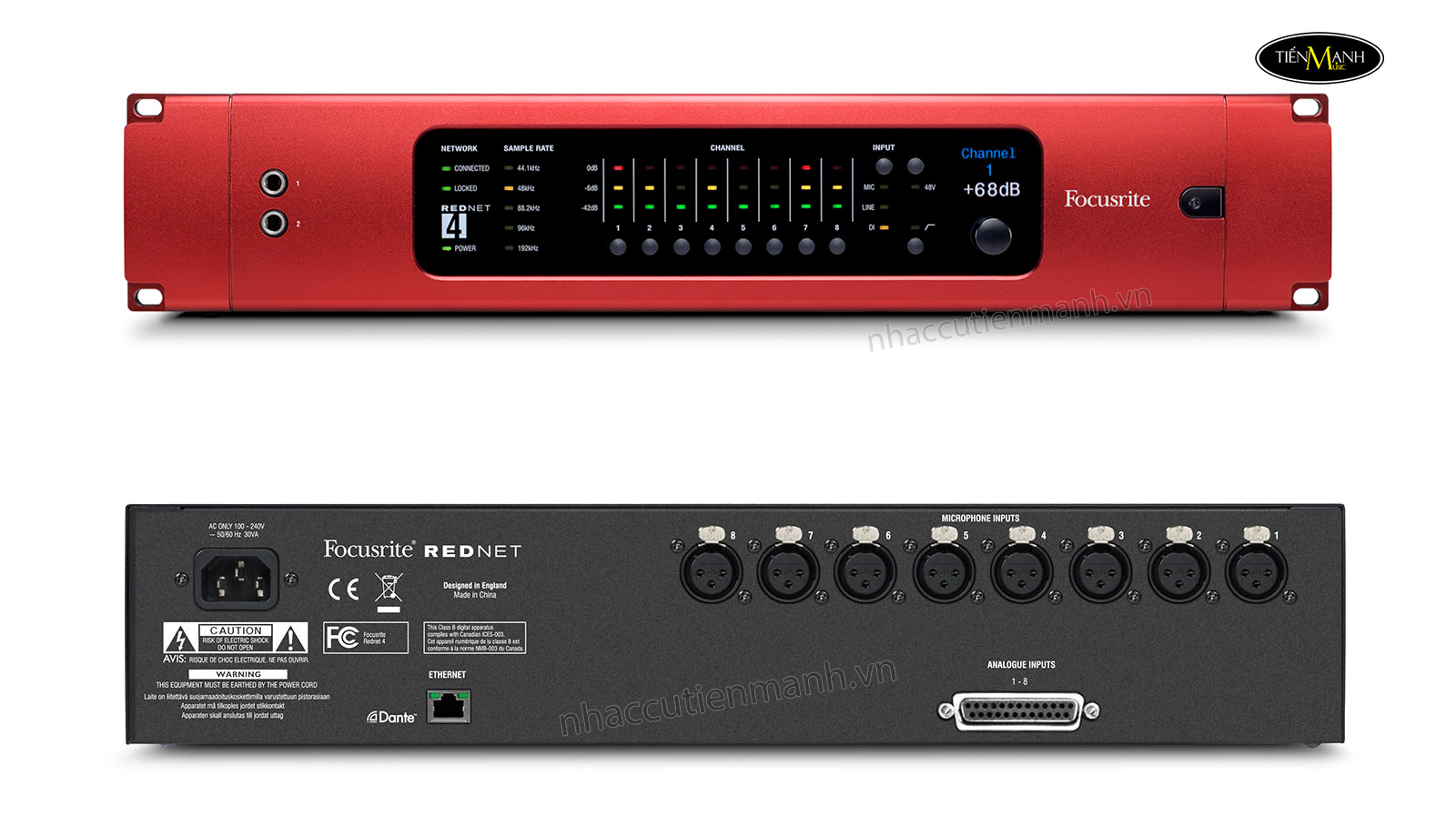

Rednet 4 thêm tám Focusrite mic preamp/line outputs điều khiển từ xa của bạn vào hệ thống Rednet chỉ bằng một sợi cáp Ethernet. Với hai DI tùy chọn , Rednet 4 mang dải inputs analogue hữu ích đến hệ thống của bạn.
Thiết bạn này có bộ chuyển đổi A-D chính xác , Đẳng cấp thế giới của Focusrite. Mic/Line/DI selection, gain, phantom power, HPF và các thông số cũng có thể được tiếp cận dễ dàng ở mặt điều khiển phía trước. Lợi ích của microphone pre-amp gain điều khiển từ xa là bạn có thể giữ mic gần nguồn (để dây cáp analogue không phải chạy quá dài) trong khi vẫn thiết lập các giai đoạn gain từ phòng điều khiển.
Gain Range: 0 dB; 8 to 63 dB in 1 dB steps
Type: 8 x XLR, electronically balanced, 2.4 kΩ input impedance
Maximum Input Level: +16, +/-0.5 dB; minimum gain for 0 dBFS, Rs = 150 Ω, pad out
Minimum Input Level: -47, +/-0.5 dB; maximum gain for 0 dBFS, Rs = 150 Ω, pad out
Frequency Response: 20 Hz to 55 kHz, +/-0.1 dB (-3 dB @ 80 kHz, fs = 192 kHz); Rs = 150 Ω
THD+N: < 0.0007% @ -1.0 dBFS; +15 dBu input, Rs = 150 Ω, 20 Hz to 22 kHz
Noise: EIN -128 dB; 60 dB gain, Rs = 150 Ω, 20 Hz to 22 kHz
Phantom Power: 48V, independently switchable per-channel
SNR: 119 dB A-weighted, Rs = 150 Ω
Line Inputs
Gain Range: -12 to 42 dB in 1 dB steps
Type: 1 x 25-pin D-Sub
Maximum Input Level: +24, +/-0.5 dB; minimum gain for 0 dBFS
Minimum Input Level: -30, +/-0.5 dB; maximum gain for 0 dBFS
Frequency Response: 20 Hz to 20 kHz, +/-0.1 dB
THD+N: < 0.003% @ -1.0 dBFS; +23 dBu input, minimum gain, 20 Hz to 22 kHz
SNR: 117 dB A-weighted
Instrument Inputs
Inputs 1 and 2 only
Type: 2 x 1/4″ TRS
Gain Range: +14 to 68 dB in 1 dB steps
Maximum Input Level: +10, +/-0.5 dB; minimum gain for 0 dBFS
Minimum Input Level: -+44, +/-0.5 dB; maximum gain for 0 dBFS, pad out
Frequency Response: 20 Hz to 20 kHz, +/-0.1 dB
THD+N: < 0.001% @ -1.0 dBFS; +9 dBu input, minimum gain, 20 Hz to 22 kHz
SNR: 112 dB A-weighted
High Pass Filter
Analog
Selection: Independently switchable per-channel
Frequency Slope: -6 dB @ 65, +/-3 Hz, 12 dB/octave
Crosstalk
Input to Input: ﹤-80 dB (all other channels at 0 dBFS)
Digital Performance
Supported Sample Rates: 44.1, 48, 88.2, 96 and 192 kHz
Clock Sources: Internal or from network master device
Front Panel Indicators
Power: 1 x Green
Network Connected: 1 x Green
Sync Lock: 1 x Green
Sample Rate: 5 x Yellow
Channel 1/2 Source: 3 x Yellow (mic/line/inst)
Signal Level: 8 x Green (-42 dBFS); 8 x Yellow ( -6 dBFS); 8 x Red (overload)
Channel Select Buttons: 8
Channel Function Controls: Input source, HPF, phantom power, gain encoder
Channel Display: Color OLED; channel number, input source, gain
Power Requirements
100~240V AC, 50/60 Hz
Dimensions
19 x 9.7 x 3.5″ (483 x 247 x 89 mm)
Weight
8.8 lb (4 kg)
Packaging Info
Package Weight
14.05 lb
Box Dimensions (LxWxH)
23.9 x 16.4 x 9.1″
