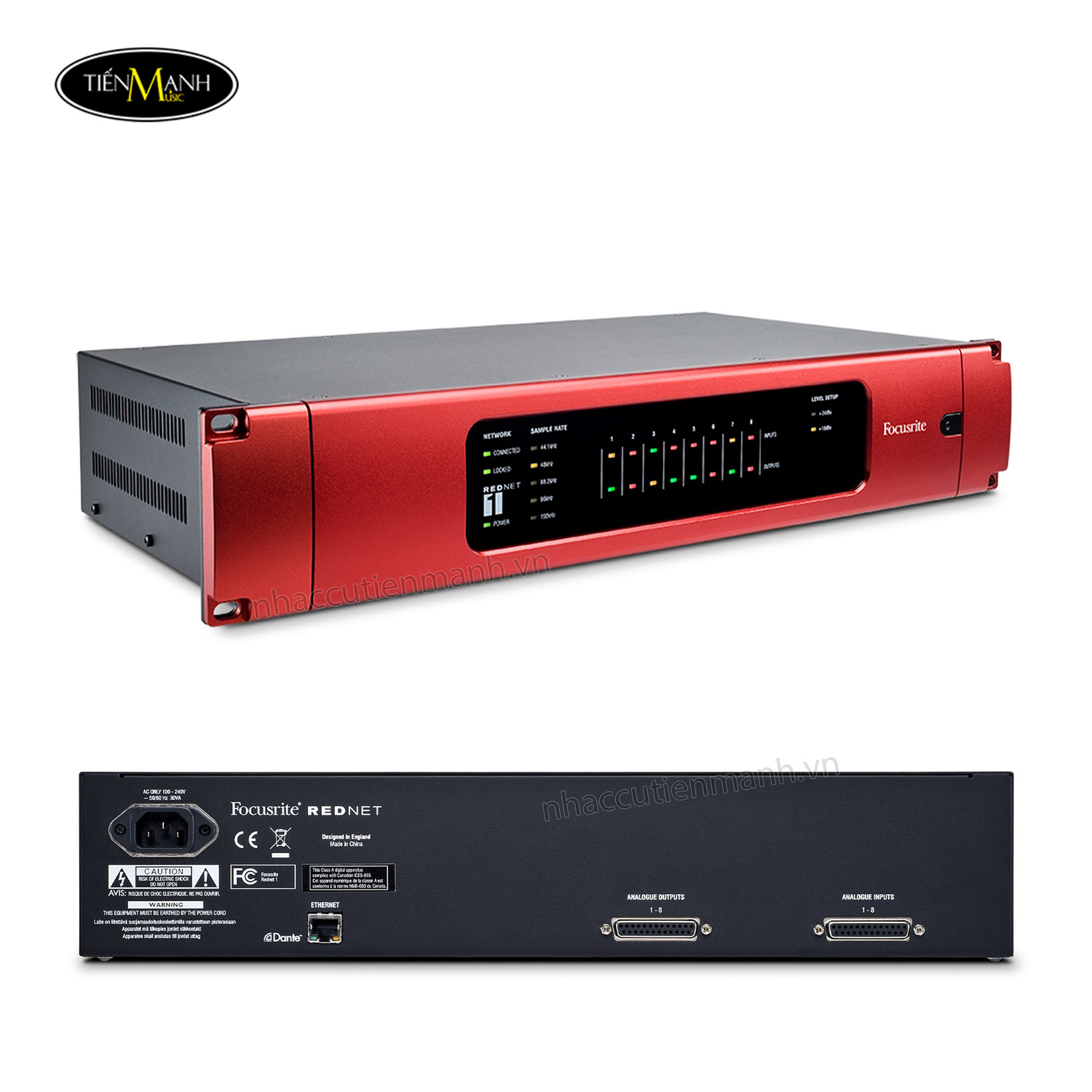

Focusrite Rednet 1 8-channel A-D/D-A 8 x 8 Ethernet Audio Network Interface

Focusrite Rednet 1 8-channel A-D/D-A 8 x 8 Ethernet Audio Network Interface

• Reliable, robust digital audio networking for the studio
• 24-bit operation at up to 192kHz sampling rate
• Up to 128 inputs and 128 outputs at 48 and 96kHz
• Superb audio quality with a dynamic range of 119dB
• Proven Dante networking technology uses standardnetworking components
• JetPLLTM technology provides ultra-low-jitter in all I/O units
• Units are hot-swappable, detected and configured automaticallyon plug-in
  RedNet 1 Features:
• Dynamic Range: 119dB
• THD+Noise (input and output) <0.001%
• Input and output 0dBFS reference levels +18dBu (EBU) or +24dBu (SMPTE-RP155)
• JetPLLTM technology minimizes jitter in the conversion process
• Supported sample rates: 44.1, 48, 88.2, 96, 192kHz
• Analog inputs 1-8 via DB-25 connector
• Analog outputs 1-8 via DB-25 connector
• Dante Ethernet port
